Product Introduction

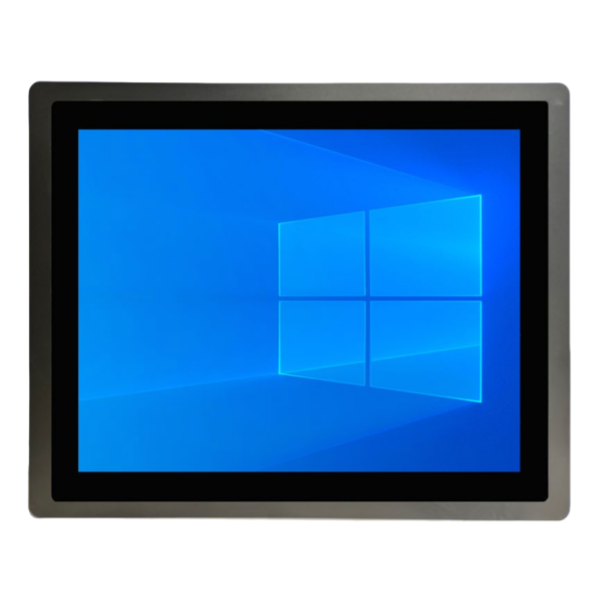

17-inch monitor, 18.5-inch monitor, 19-inch monitor, supports various types of motherboards Industrial-grade embedded touch screen computer, using ultra-thin design, with strong, fanless, shockproof, strong compatibility and other characteristics. It can be widely used in industrial automation, embedded equipment control and other aspects.
Product Features
1*SODDR3L memory slot, supports single-channel 1600/1333MHz
DDR3L/1.35V memory, supports up to 8GB 1/2* SATA2.0 hard disk interface, transmission rate up to 3Gbps. 1*MSATA slot, supports SSD solid state hard disk, SSD transmission speed up to 6Gbps
Internal Storage | 1*SODDR3L Memory slot, supports single channel 1600/1333MHz DDR3L/1.35V memory, up to 8GB |
CPU | Compatible with Intel® Sandy /Ivy Bridge Pentium/Celeron/I3/I5/I7 BGA1023 low-power processors. Intel® BayTrail-M/D full series CPU, Intel® Skylake-U/Kabylake-U Pentium/Celeron/I3/I5/I7 low-power processors are available for customers to choose flexibly |
Operating System | Ubuntu15.1 Red Hat® Enterprise Linux® 32 ,64 windows |
Memory | 1/2* SATA2.0 hard disk interface, transmission rate up to 3Gbps. 1* MSATA slot, support SSD solid state drive, SSD transfer speed up to 6Gbps |
Resolution Ratio | 1280x1024 |
Touch | Optional touch |
Aspect Ratio | 271.3X388.9,230x409.5,302.1x377.3 |
Temperature, Humidity | Working temperature: -10℃~60℃ working humidity: 5~90% relative humidity, no condensation storage temperature: -20℃~60℃ |
Contrast Ratio | 3000 |
View Angle | 178° |
Backlight life | 3-5 years |
Power Dissipation | 25W~65W |
Power Input | Standard external power supply is adopted, and automatic power on function is supported |
Size | 21.5 |
Material Quality | Aluminum alloy, iron |
I/O Joggle | Backplane I/O interfaces: 2 * USB3.0, 1 * HDMI, 2 * VGA, 2 * RJ-45 Gigabit network interfaces (choose one between USB1 and LAN2),1 * Line out (green), 1 * Mic (red), 1 * DC 12V power interface, built-in interfaces: 1 * LVDS interface, 2 * 15-pin, supports dual-channel 24-bit (dual 8),1 * LVDS, backlight interface, 1 * 6-pin, 1 * J_HDMI interface, 2 * 8-pin, 1 * JVGA1 interface, 1 * 12-pin (same signal as DB15),2 * RS232 serial ports, COM2 supports RS485/422, COM1/2 supports the 9th pin power function.1 * LPT printing The port has 2*13pin6* USB 2.0 interface, 2*5pin, 1* PS/2 mouse and keyboard interface, and 1*6Pin1* front panel function button and indicator light connection Port 2*5pin1* front panel audio interface 2*5pin1* power amplifier interface 1*4pin1* SIM card slot 1* hard disk power supply interface 1*4pin1* DC12V input and output power interface 1*4pin, choose one of the 2*2pinATX power interface GPIO function supports 4 input and output GPIO |
Expand The Bus | 1* Mini-PCIE slot, supports WIFI and 3G/4G module 1* Mini-PCIE slot, supports WIFI/TPM-4COM small board, which can be used, TPM-4COM small board expands 4 serial ports |
